Product Overview
The TM-1704 is a roller lever horizontal micro switch designed for industrial control and automation applications. It uses a snap-action contact mechanism and roller lever actuator to provide reliable mechanical position detection and switching performance.
This page describes model TM-1704 only. The micro switch is suitable for industrial equipment, automation mechanisms, mechanical travel detection, and control systems requiring flexible actuator movement.

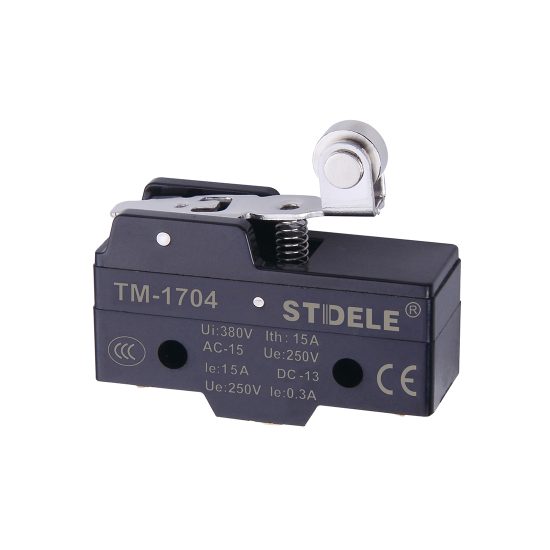

Product Display
The TM-1704 features a compact horizontal body structure with a roller lever actuator, precision contact mechanism, and terminal connection design. The roller lever provides smooth mechanical contact with moving machine parts.
Key Technical Data
| Item | TM-1704 |
|---|---|
| Product type | Horizontal micro switch |
| Actuator type | Roller lever actuator |
| Contact form | Snap-action contact |
| Operating force | 1.57N max. |
| Release force | 0.41N min. |
| Pre-travel | 2.4mm max. |
| Overtravel | 0.5mm min. |
| Movement differential | 32.5mm max. |
| Operating position | 30.2 ± 0.4mm |
Features
- Roller lever actuator for flexible mechanical contact.
- Snap-action contact mechanism for stable electrical switching.
- Compact horizontal micro switch structure.
- Reliable position detection for industrial automation systems.
- High accuracy operation with wide operating speed range.
- Suitable for equipment control, mechanical detection, and automation applications.
Drawing

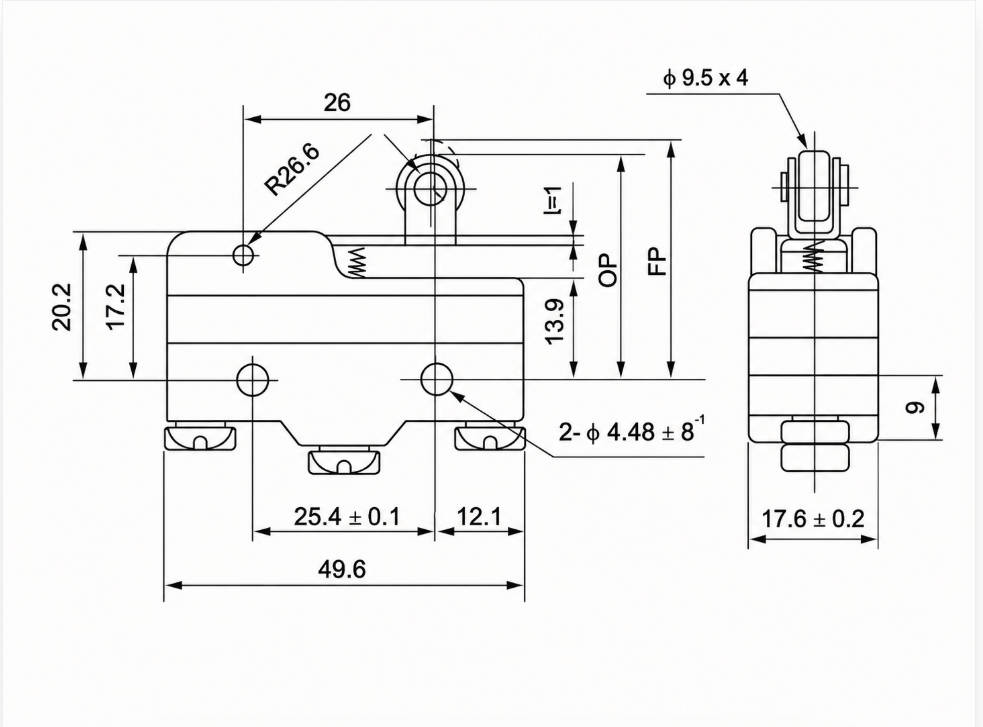

Outline and Mounting Dimensions
The drawing provides the body dimensions, roller lever position, mounting holes, and terminal arrangement of the TM-1704. Confirm the mechanical clearance and actuator movement direction before installation.

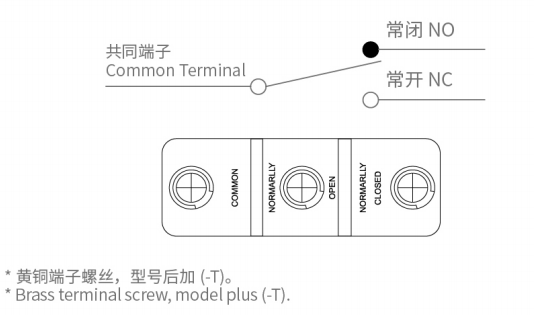

Contact Form
The TM-1704 uses a snap-action contact mechanism. The contact state changes when the roller lever actuator reaches the operating position.
Select the contact configuration according to the electrical requirements of the equipment.
Ratings
| Rated Voltage | Resistance Load NC | Resistance Load NO | Lamp Load NC | Lamp Load NO | Inductive Load NC | Inductive Load NO | Motor Load NC | Motor Load NO |
|---|---|---|---|---|---|---|---|---|
| 125VAC | 15 | 15 | 3 | 1.5 | 15 | 15 | 5 | 2.5 |
| 250VAC | 15 | 15 | 2.5 | 1.25 | 15 | 15 | 3 | 1.5 |
| 500VAC | 3 | 3 | 1.5 | 0.75 | 2.5 | 2.5 | 1.5 | 0.75 |
Specifications
Electrical
| Contact resistance | 15 mΩ max. initial value |
| Insulation resistance | 100 MΩ min. at 500VDC |
| Operating frequency | Electrical: 20 operations/min |
| Dielectric strength | 1000VAC between same polarity terminals; 1500VAC between current and non-current parts |
Mechanical
| Operating speed | 0.01mm to 1m/s |
| Vibration | 10-55Hz, 1.5mm double amplitude |
| Shock | Mechanical durability approx. 100G; malfunction approx. 30G |
Environmental
| Ambient temperature | -15°C to +80°C, with no icing |
| Humidity | General type 35-85% RH; sealed type 35-95% RH |
| Weight | About 22g to 58g |
Operating Characteristics
| Parameter | Description | TM-1704 |
|---|---|---|
| OF | Operating force | 1.57N |
| RF | Release force | 0.41N |
| PT | Pre-travel | 2.4mm |
| OT | Overtravel | 0.5mm |
| MD | Movement differential | 32.5mm |
| OP | Operating position | 30.2 ± 0.4mm |
Selection Guide
Actuator Type
Select TM-1704 when a roller lever actuator is required for smooth mechanical contact and reliable switching response.
Operating Stroke
Confirm the required pre-travel, overtravel, and operating position according to the mechanical movement of the equipment.
Electrical Load
Check voltage, current, load type, and switching frequency before selection. Inductive loads should consider surge conditions.
Installation Environment
Ensure the switch is installed within the specified temperature, humidity, and mechanical conditions.
Application Matching
TM-1704 is suitable for automation systems, industrial equipment, mechanical detection, and control applications.
