Product Overview
The LXW20-11M is a stepped magnetic blow-out micro switch designed for industrial switching and position control applications. It features a rubber covered stepped plunger actuator, magnetic arc extinguishing structure, and reliable snap-action contact mechanism.
The stepped plunger design controls pressing travel and helps prevent excessive mechanical impact on the internal spring structure. The rubber cover improves protection against dust, impact, and environmental contamination.
LXW20-11M is suitable for elevators, machinery, household appliances, workshop equipment, safety interlocks, and precision automation systems.
Product Display

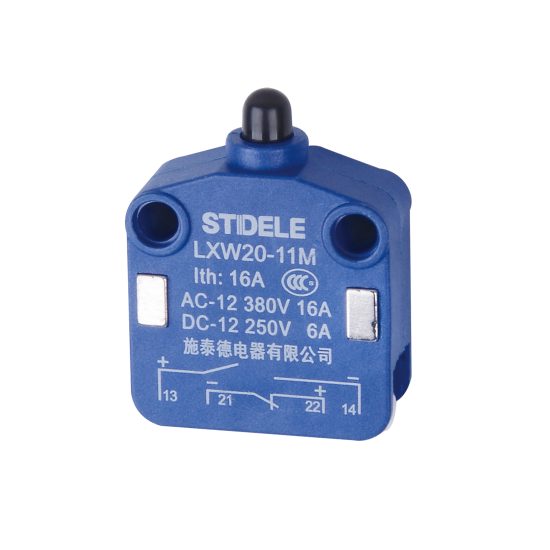

The LXW20-11M uses a compact flame-retardant plastic housing with side mounting holes, clear terminal identification, rubber covered plunger actuator, and internal magnetic blow-out arc extinguishing components.
Key Technical Data
| Item | LXW20-11M |
|---|---|
| Product type | Magnetic blow-out micro switch |
| Actuator type | Stepped rubber covered plunger |
| Contact form | 1NO + 1NC snap-action |
| Arc extinguishing method | Magnetic blow-out structure |
| Housing material | Flame-retardant insulating plastic |
| Contact material | Silver alloy contact |
| Application | High-load switching and position control |
Features
- Stepped plunger structure controls pressing depth and improves mechanical protection.
- Magnetic blow-out arc extinguishing technology improves high-load switching reliability.
- Rubber covered plunger reduces impact noise and protects internal components.
- Flame-retardant plastic housing provides insulation and heat resistance.
- Silver alloy contacts provide stable conductivity and long service life.
- Clear terminal markings simplify NO/NC wiring.
- Suitable for safety interlock and industrial control applications.
Dimensions

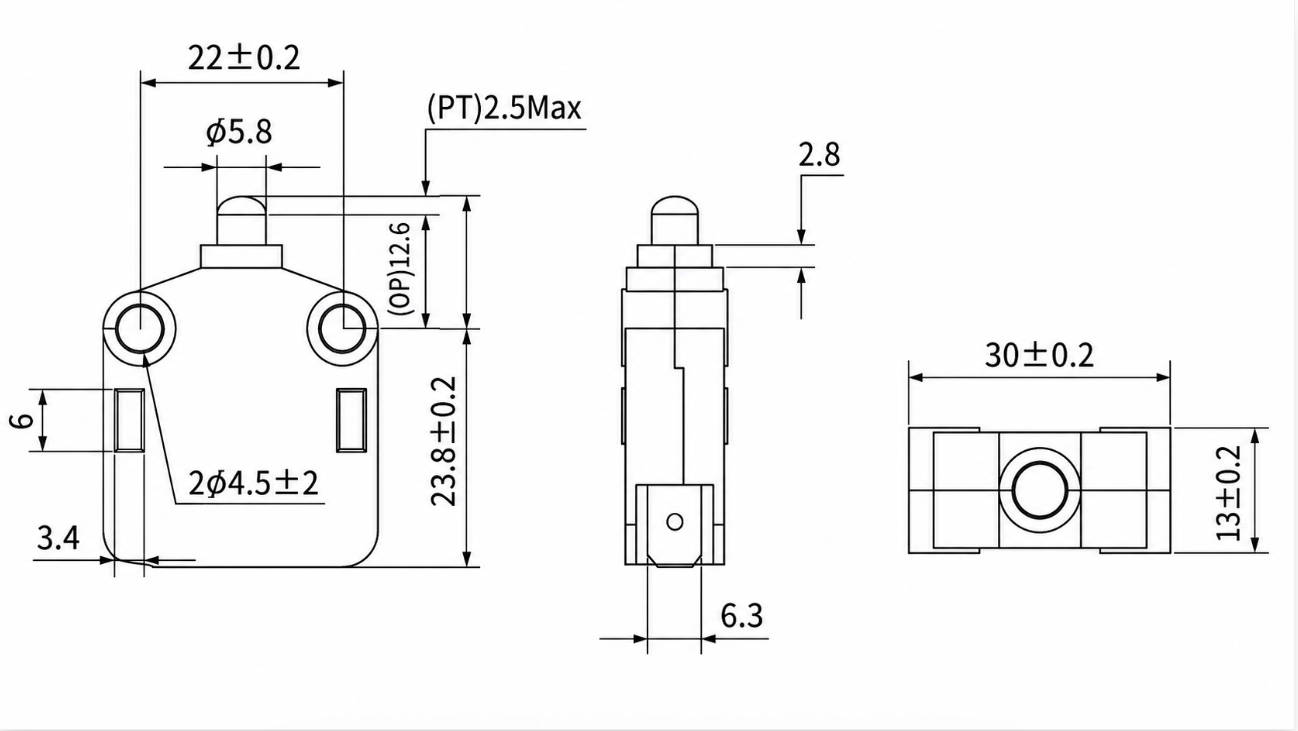

The drawing provides the LXW20-11M housing dimensions, plunger structure, mounting holes, and terminal arrangement. Confirm mounting position and actuator travel before installation.
Contact Form
LXW20-11M uses a 1NO + 1NC snap-action contact structure. The normally open and normally closed contacts support flexible control circuit design.
Ratings
| Rating Type | Specification |
|---|---|
| Ordinary type AC-12 | 380V 16A |
| Ordinary type AC-15 | 400V 3A |
| Magnetic blow-out DC-12 | 380V 16A |
| Magnetic blow-out DC-12 | 250V 5A |
Specifications
Electrical
| Operating speed | 5mm to 0.5m/s |
| Operating frequency | Electrical: 30 operations/min |
| Contact resistance | 25mΩ max. initial value |
| Insulation resistance | 100MΩ min. at 500VDC |
| Dielectric strength | 1500VAC, 50/60Hz for 1 minute |
Mechanical and Environmental
| Vibration | 10-55Hz, 1.5mm double amplitude |
| Shock | Mechanical durability approx. 100G; malfunction approx. 30G |
| Ambient temperature | -20°C to +70°C, no icing |
| Humidity | 85% RH or above |
| Electrical life | 100,000 operations above |
Operating Characteristics
LXW20-11M is designed for controlled plunger operation. The stepped actuator should be pressed within the specified travel range to maintain stable switching and long service life.
Selection Guide
Actuator Type
Select LXW20-11M when a stepped plunger actuator with controlled pressing depth and magnetic arc extinguishing capability is required.
Electrical Load
Confirm rated voltage, current, load type, and switching frequency before selection. Magnetic blow-out versions are suitable for applications requiring improved arc control.
Application Environment
The flame-retardant housing and protected internal structure make LXW20-11M suitable for industrial environments and safety-related equipment.
Wiring Configuration
Connect NO and NC terminals according to the control circuit requirements of the equipment.
