Product Overview
The LSA-081 is a vertical limit switch equipped with a spring actuator. It is designed for mechanical position detection, travel limit control, and machine operation feedback in industrial automation systems. The flexible spring actuator provides long operating travel and allows reliable detection when the moving part contacts the switch from different directions.
This page describes model LSA-081 only. It is suitable for conveyors, machine tools, safety systems, doors, moving mechanisms, and industrial equipment requiring flexible mechanical position sensing.

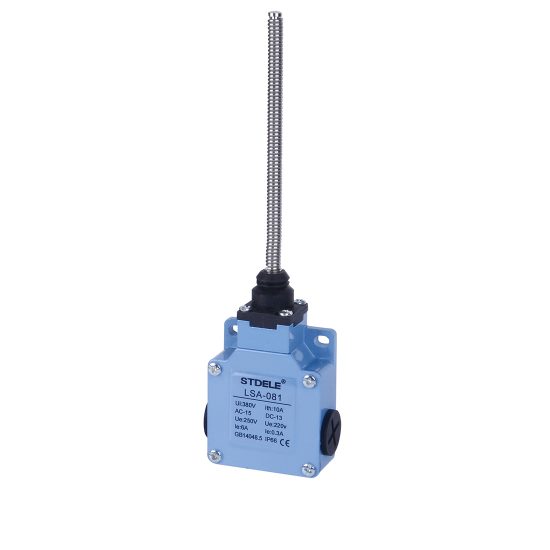

Product Display
The LSA-081 uses a vertical switch body with a spring actuator, sealed contact mechanism, mounting base, and cable connection structure. The flexible actuator design supports long-stroke mechanical contact applications.
Key Technical Data
| Item | LSA-081 |
|---|---|
| Product type | Vertical limit switch |
| Actuator type | Spring actuator |
| Contact form | 1NO + 1NC snap-action |
| Protection degree | IP66 |
| Operating force | 1.47N max. |
| Release force | 0.49N min. |
| Pre-travel | 30mm max. |
| Overtravel | 20mm min. |
| Trigger position | 22.5 degrees |
| Movement differential | 14 degrees max. |
| Total travel | 50mm min. |
Features
- Double-circuit 1NO + 1NC snap-action contact structure.
- Flexible spring actuator for long-stroke mechanical position detection.
- High mechanical strength housing structure.
- Water-proof and oil-proof construction for industrial applications.
- Built-in contact mechanism for stable switching performance.
- Large travel range for reliable mechanical operation.
- Suitable for automation equipment, conveyors, safety systems, and machine control.
Drawing

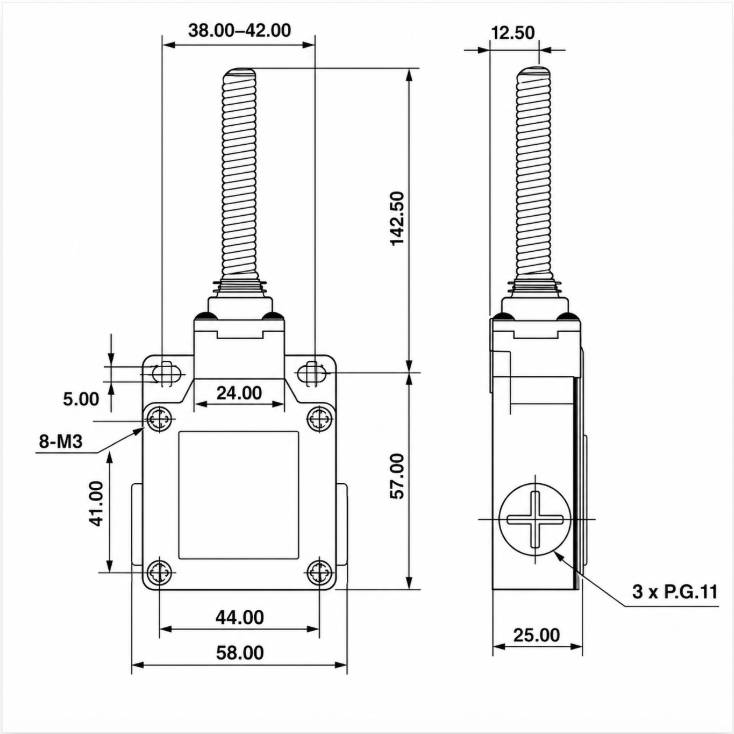

Outline and Mounting Dimensions
The drawing provides the body dimensions, mounting position, spring actuator movement range, and installation clearance of the LSA-081. Confirm the mechanical contact direction and available travel space before installation.
Contact Form
LSA-081 uses a 1NO + 1NC snap-action contact structure. The contact state changes when the spring actuator is operated by a moving mechanical part.
The NO and NC contact logic should be selected according to the equipment control circuit and safety requirements.
Ratings
| Rated Voltage | Resistance Load NC | Resistance Load NO | Lamp Load NC | Lamp Load NO | Inductive Load NC | Inductive Load NO | Motor Load NC | Motor Load NO |
|---|---|---|---|---|---|---|---|---|
| 125VAC | 5A | 5A | 1.5A | 0.7A | 3A | 3A | 2A | 1A |
| 250VAC | 5A | 5A | 1A | 0.5A | 3A | 3A | 1.5A | 0.8A |
Specifications
Electrical
| Contact resistance | 25 mΩ max. initial value |
| Insulation resistance | 100 MΩ min. at 500VDC |
| Dielectric strength | 1000VAC between same polarity terminals; 1500VAC between current and non-current parts |
Mechanical
| Operating speed | 5mm to 0.5m/s |
| Operating frequency | Electrical: 30 operations/min |
| Vibration | 10-55Hz, 1.5mm double amplitude |
| Shock | Mechanical durability approx. 100G; malfunction approx. 30G |
Environmental
| Ambient temperature | -20°C to +70°C, with no icing |
| Humidity | <95% RH |
| Degree of protection | IP66 |
Operating Characteristics
| Parameter | Description | LSA-081 |
|---|---|---|
| OF | Operating force | 1.47N |
| RF | Release force | 0.49N |
| PT | Pre-travel | 30mm |
| TP | Trigger position | 22.5 degrees |
| MD | Movement differential | 14 degrees |
| OT | Overtravel | 20mm |
| TT | Total travel | 50mm |
Selection Guide
Actuator Type
Select LSA-081 when a flexible spring actuator is required for long-stroke mechanical detection and variable contact direction applications.
Mechanical Stroke
Confirm the available movement range. LSA-081 provides 30mm pre-travel, 20mm overtravel, and 50mm total travel for flexible operation.
Electrical Load
Check voltage, current, load type, and contact logic before selection. Consider surge current for inductive and motor loads.
Installation Environment
The housing is suitable for general industrial environments with dust, oil mist, and moisture exposure when correctly installed.
Application Matching
LSA-081 is suitable for conveyors, machine tools, doors, safety systems, and industrial automation equipment.
