Product Overview
The LSA-031 is an adjustable plastic roller lever type vertical limit switch designed for mechanical position detection, travel limit control, and machine operation feedback in industrial automation equipment. It uses an adjustable roller lever actuator to convert mechanical movement into an electrical switching signal, allowing the control circuit to stop, reverse, change speed, or confirm the position of a moving mechanism.
This page describes model LSA-031 only. It is suitable for applications where a cam, plate, guide rail, door mechanism, conveyor component, or moving machine part contacts the roller lever during operation, and where actuator direction or working position adjustment is required during installation.
Key Technical Data
| Item | LSA-031 |
|---|---|
| Product type | Vertical limit switch |
| Actuator type | Adjustable plastic roller lever |
| Contact form | 1NO + 1NC snap-action |
| NO terminal | 13–14 |
| NC terminal | 11–12 |
| Protection degree | IP66 |
| Operating force | 400g max. |
| Release force | 100g min. |
| Pre-travel | 20° max. |
| Tripping position | 22.5° ±10% |
| Overtravel | 75° min. |
| Total travel | 95° min. |
| Rotary indexing | 22.5° |

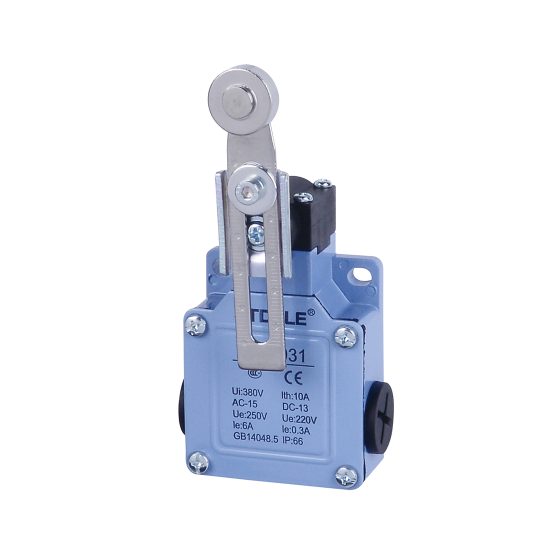

Product Display
The LSA-031 has a compact vertical switch body with an adjustable plastic roller lever head, sealed contact housing, conduit connection section, and mounting base. The adjustable roller lever is used when the moving part contacts the switch from a controlled direction and the actuator position needs to be matched to the machine structure.
Features
- Double-circuit limit switch with 1NO + 1NC snap-action contact mechanism.
- Adjustable plastic roller lever actuator for mechanical position and stroke limit detection.
- Actuator direction can be adjusted to match different machine structures.
- Compact housing suitable for machinery and automation equipment installation.
- High mechanical strength with reinforced housing structure.
- Water-proof and oil-proof construction for industrial environments.
- Built-in contact box with double-spring mechanism for stable switching action.
- Smooth operation with larger overtravel distance.
- Three-way outgoing line design for convenient wiring.
- IP66 protection degree when properly installed and sealed.
Drawing

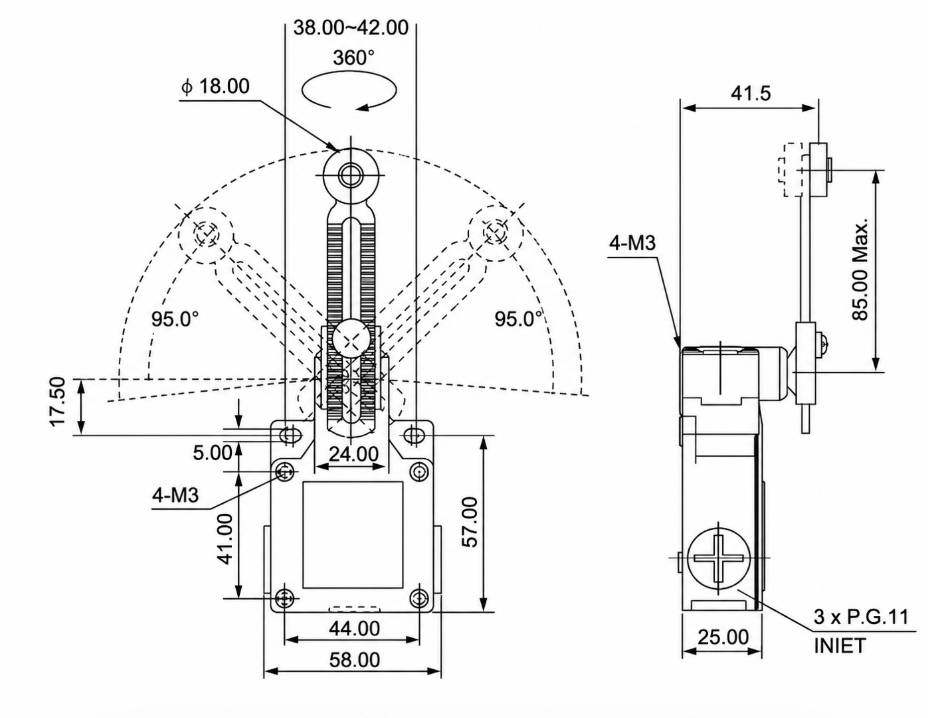

Outline and Mounting Dimensions
The outline drawing is used to confirm the body dimensions, mounting hole position, actuator movement direction, roller lever clearance, and cable entry arrangement of the LSA-031. Before installation, verify that the machine part can operate the adjustable roller lever smoothly without excessive side impact or mechanical interference.
Contact Form
LSA-031 uses a 1NO + 1NC snap-action contact structure. The normally open contact uses terminals 13–14 and closes when the actuator is operated. The normally closed contact uses terminals 11–12 and opens when the actuator is operated.
The contact logic should be selected according to the control circuit. For position confirmation or safety-related interlock circuits, NC logic is often used, but the final wiring method should follow the machine electrical design.
Ratings
Rated Load Table
| Rated Voltage | Resistance Load NC | Resistance Load NO | Lamp Load NC | Lamp Load NO | Inductive Load NC | Inductive Load NO | Motor Load NC | Motor Load NO |
|---|---|---|---|---|---|---|---|---|
| 125VAC | 5A | 5A | 1.5A | 0.7A | 3A | 3A | 2A | 1A |
| 250VAC | 5A | 5A | 1A | 0.5A | 3A | 3A | 1.5A | 0.8A |
| 8VDC | 5A | 5A | 3A | 3A | 5A | 4A | 3A | 3A |
| 14VDC | 5A | 5A | 3A | 3A | 4A | 4A | 3A | 3A |
| 30VDC | 5A | 5A | 3A | 3A | 4A | 4A | 3A | 3A |
| 125VDC | 0.4A | 0.4A | – | – | – | – | – | – |
| 250VDC | 0.2A | 0.2A | – | – | – | – | – | – |
Load Type Notes
- Inrush current: NC below 24A, NO below 12A.
- Inductive load has a power factor of 0.4 minimum for AC and a time constant of 7 ms maximum for DC.
- Lamp load inrush current is approximately 10 times the steady-state current.
- Motor load inrush current is approximately 6 times the steady-state current.
- For inductive, lamp, or motor loads, select the switch according to inrush current, not only steady-state current.
Specifications
Electrical
| Item | Specification |
|---|---|
| Contact resistance | 25 mΩ max., initial value |
| Insulation resistance | 100 MΩ min. at 500 VDC |
| Dielectric strength 1 | 1000 VAC, 50/60 Hz for 1 minute between terminals of the same polarity |
| Dielectric strength 2 | 1500 VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts |
| Dielectric strength 3 | 1500 VAC, 50/60 Hz for 1 minute between each terminal and ground |
| Electrical life | 300,000 operations or above |
Mechanical
| Item | Specification |
|---|---|
| Operating speed | 5 mm to 0.5 m/s |
| Operating frequency | Electrical: 30 operations/min |
| Vibration | 10–55 Hz, 1.5 mm double amplitude |
| Shock durability | 1000 m/s², approx. 100G |
| Shock malfunction | 300 m/s², approx. 30G |
Environmental
| Item | Specification |
|---|---|
| Ambient temperature | -20°C to +70°C, with no icing |
| Humidity | <95% RH |
| Degree of protection | IP66 |
Operating Characteristics
The following operating characteristics apply to model LSA-031 only. The actuator stroke, tripping position, overtravel allowance, and head indexing angle should be checked according to the installation direction and moving part of the machine.
| Parameter | Description | LSA-031 |
|---|---|---|
| OF | Operating force, maximum | 400g |
| RF | Release force, minimum | 100g |
| PT | Pre-travel, maximum | 20° |
| TP ±10% | Tripping position | 22.5° |
| MD | Movement differential, maximum | 10° |
| OT | Overtravel, minimum | 75° |
| TT | Total travel, minimum | 95° |
| Rotary indexing | Head indexing angle | 22.5° |
Selection Guide
Actuator and Motion Direction
LSA-031 uses an adjustable plastic roller lever actuator. It is suitable for applications where a moving cam, plate, or guide rail contacts the roller during machine movement. The adjustable lever helps match the actuator position to different machine layouts.
Electrical Load and Contact Rating
Confirm the circuit voltage, current, load type, and required NO or NC logic before selection. For lamp, inductive, and motor loads, check the inrush current in addition to the rated steady-state current.
Stroke and Overtravel
The LSA-031 has 20° maximum pre-travel, 22.5° tripping position, and 75° minimum overtravel. The moving part should operate the roller smoothly and provide enough reset space after actuation.
Installation Environment
The IP66 housing is suitable for general industrial environments with dust, oil mist, and water exposure. The switch should not be used for continuous immersion, and cable entry sealing should be confirmed after wiring.
Wiring and Contact Logic
The NO contact uses terminals 13–14, and the NC contact uses terminals 11–12. Select the wiring logic according to the machine control system and interlock requirement.
